Aluminum Railing
Railing
Tuscany C10
- Height – 36″, 42″
- Section Width – 48″, 60″, 72″, 84″, 96″
- Post Size – 2″, 2.5″, 4″, or 6″
- Top Rail – 1 3/4″ x 1 3/8″ curved top
- Bottom rail size – 1 3/4″ x 1 1/4″
- Baluster Size – 3/4″ x 3/4″ square
- Color – 12 colors to choose from
- Spacing Between Balusters – 3 7/8″
- Optional – drink rail
VertiCable C80
- Height – 36″, 42″
- Section Width – 48″, 60″, 72″, 84″, 96″
- Post Sizes – 2″, 2.5″, 4″ or 6″
- Baluster 9/16″ round and 1/8″ stainless steel cable
- Spacing Between Balusters – 3 3/4″ on center
- Top rail size – 1 3/4″ x 1 3/8″ Curved Top
- Bottom rail size – 1 3/4″ x 1 1/4″
- Color – 12 colors to choose from
- Optional – drink rail
Riviera C30
- Height – 36″, 42″
- Section Width – 48″, 60″, 72″, 84″, 96″
- Post Size – 2″, 2.5″, 4″, or 6″
- Top Rail – 1 3/4″ x 1 3/8″ curved top
- Middle Rail – 1 3/4″ x 1 1/4″
- Bottom Rail – 1 3/4″ x 1 1/4″
- Baluster Size – 3/4″ x 3/4″ square
- Color – 12 colors to choose from
- Spacing Between Balusters – 3 7/8″
- Optional – drink rail
Riviera C30R
- Height – 36″, 42″
- Section Width 48″, 60″, 72″, 84″, 96″
- Post Size – 2″, 2.5″, 4″, or 6″
- Top Rail – 1 3/4″ x 1 3/8″ curved top
- Middle Rail – 1 3/4″ x 1 1/4″
- Bottom Rail – 1 3/4″ x 1 1/4″
- Baluster Size – 3/4″ x 3/4″ square
- Color – 12 colors to choose from
- Spacing Between Balusters – 3 7/8″
- Optional – drink rail
Riviera C31
- Height – 36″, 42″
- Section Width – 48″, 60″, 72″, 84″, 96″
- Post Size – 2″, 2.5″, 4″, or 6″
- Top Rail – 1 3/4″ x 1 3/8″ curved top
- Middle Rail – 1 3/4″ x 1 1/4″
- Bottom Rail – 1 3/4″ x 1 1/4″
- Baluster Size – 3/4″ x 3/4″ square
- Color – 12 colors to choose from
- Spacing Between Balusters – 3 7/8″
- Optional – drink rail
Riviera C32
- Height 36″, 42″
- Section Width 48″, 60″, 72″, 84″, 96″
- Post Size – 2″, 2.5″, 4″, or 6″
- Top Rail – 1 3/4″ x 1 3/8″ curved top
- Middle Rail – 1 3/4″ x 1 1/4″
- Bottom Rail – 1 3/4″ x 1 1/4″
- Baluster Size – 3/4″ x 3/4″ square
- Color – 12 colors to choose from
- Spacing Between Balusters -3 7/8″
- Optional – drink rail
Riviera C33
- Height – 36″, 42″
- Section Width – 48″, 60″, 72″, 84″, 96″
- Post Size – 2″, 2.5″, 4″, or 6″
- Top Rail – 1 3/4″ x 1 3/8″ curved top
- Middle Rail – 1 3/4″ x 1 1/4″
- Bottom Rail – 1 3/4″ x 1 1/4″
- Baluster size – 3/4″ x 3/4″
- Color – 12 colors to choose from
- Spacing Between Balusters – 3 7/8″
- Optional – drink rail
Riviera C34
- Height – 36″, 42″
- Section Width – 48″, 60″, 72″, 84″, 96″
- Post Size – 2″, 2.5″, 4″, or 6″
- Top Rail – 1 3/4″ x 1 3/8″ curved top
- Middle Rail – 1 3/4″ x 1 1/4″
- Bottom Rail Insert – 1 3/4″ x 1 1/4″
- Baluster Size – 3/4″ x 3/4″ square
- Color – 12 colors to choose from
- Spacing Between Balusters – 3 7/8″
- Optional – drink rail
Montego C20
- Height – 36″, 42″
- Section Width – 48″, 60″, 72″, 84″, 96″
- Post Size – 2″, 2.5″, 4″ or 6″
- Top Rail – 1 3/4″ x 1 3/8″ curved top
- Bottom Rail – 1 3/4″ x 1 1/4″
- Architectural Balusters size – 3/4″ x 3/4″
- Color – 12 colors to choose from
- Spacing Between Balusters – 3 7/8″
- Optional – drink rail

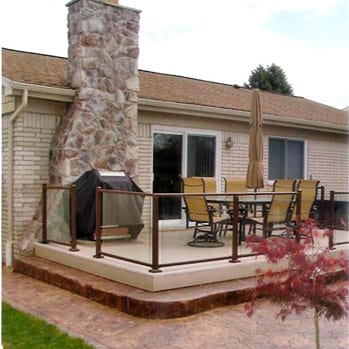

Veranda C70
- Height 36″, 42″
- Section Width – 48″, 60″, 72″
- Post Sizes – 2″, 2.5″, 4″ or 6″
- Glass Panel – 1/4″ tempered glass
- Glass Panel Colors – clear, bronze, grey
- Top Rail – 1 3/4″ x 1 3/8″ curved top
- Bottom Rail Insert – 1 3/4″ x 1 1/4″
- Color – 12 colors to choose from
- Optional – drink rail
Accessories
Tuscan C10 w/ Drink Rail
- Section Width – 74″ or 98″
- Drink Rail Width – 3 1/4″
- Supports Wood or Cellular Deck Board (not included)
- Color – 12 colors to choose from
- Installs on all Westbury C series rail systems
Gates
- Gates are available in all styles and heights of rail
